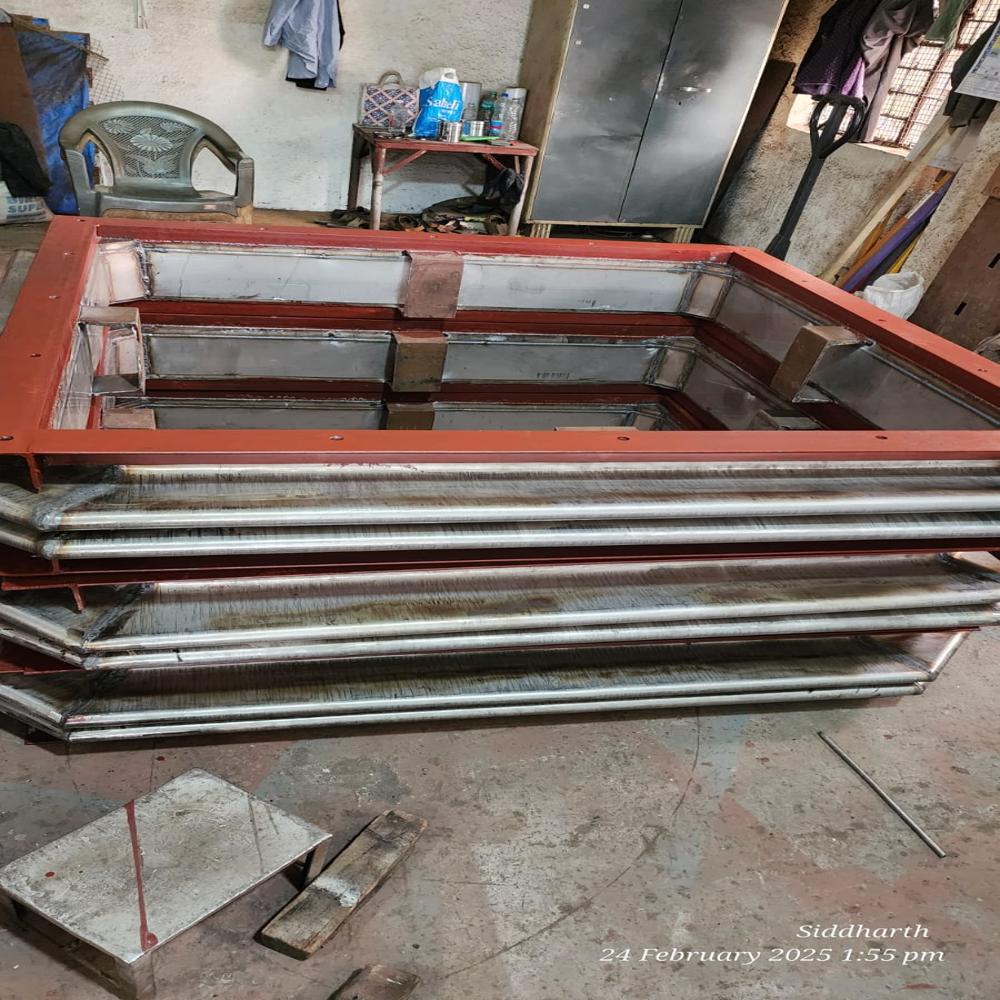

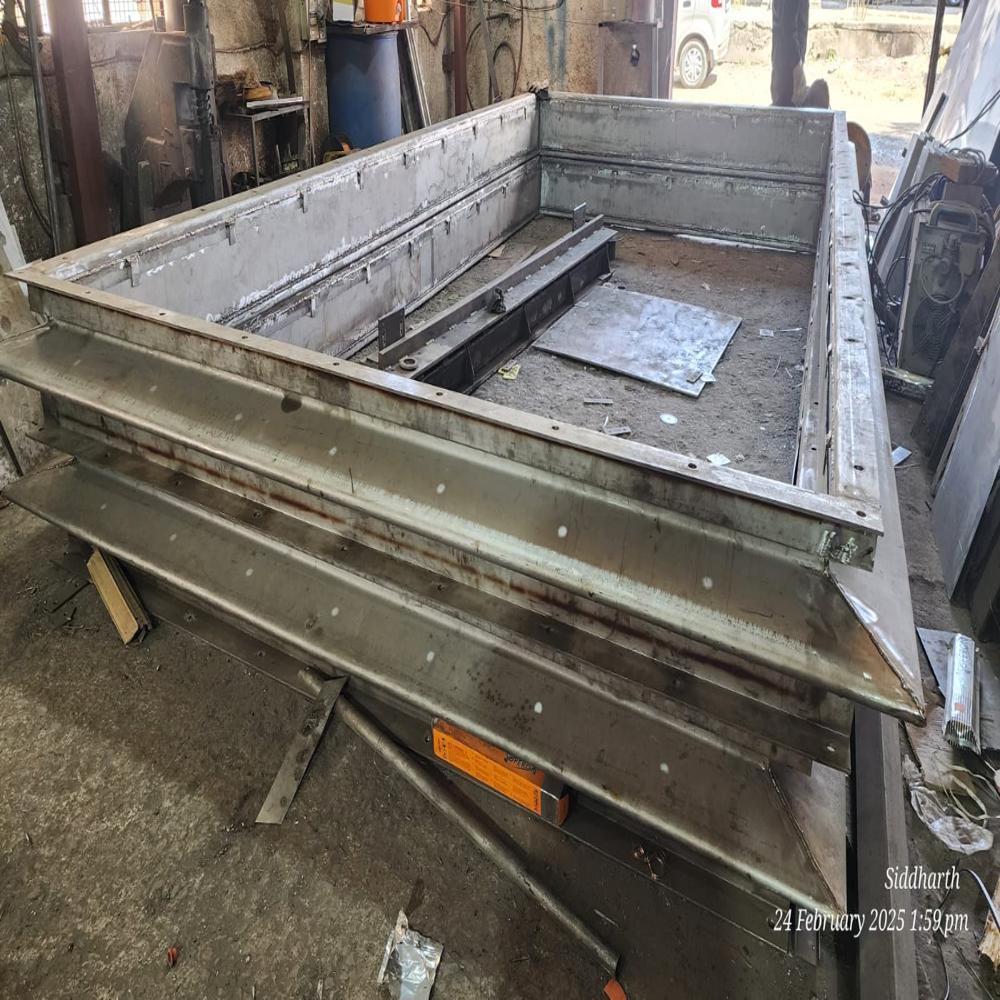

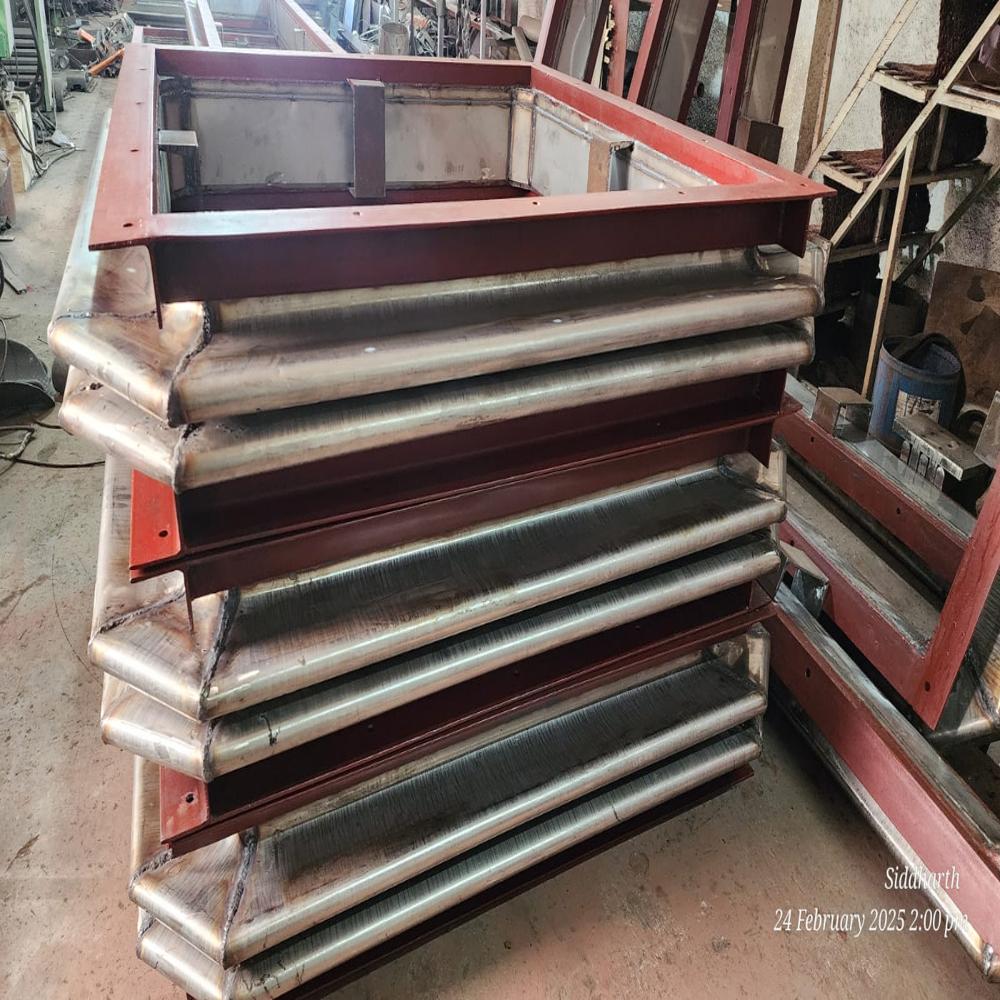

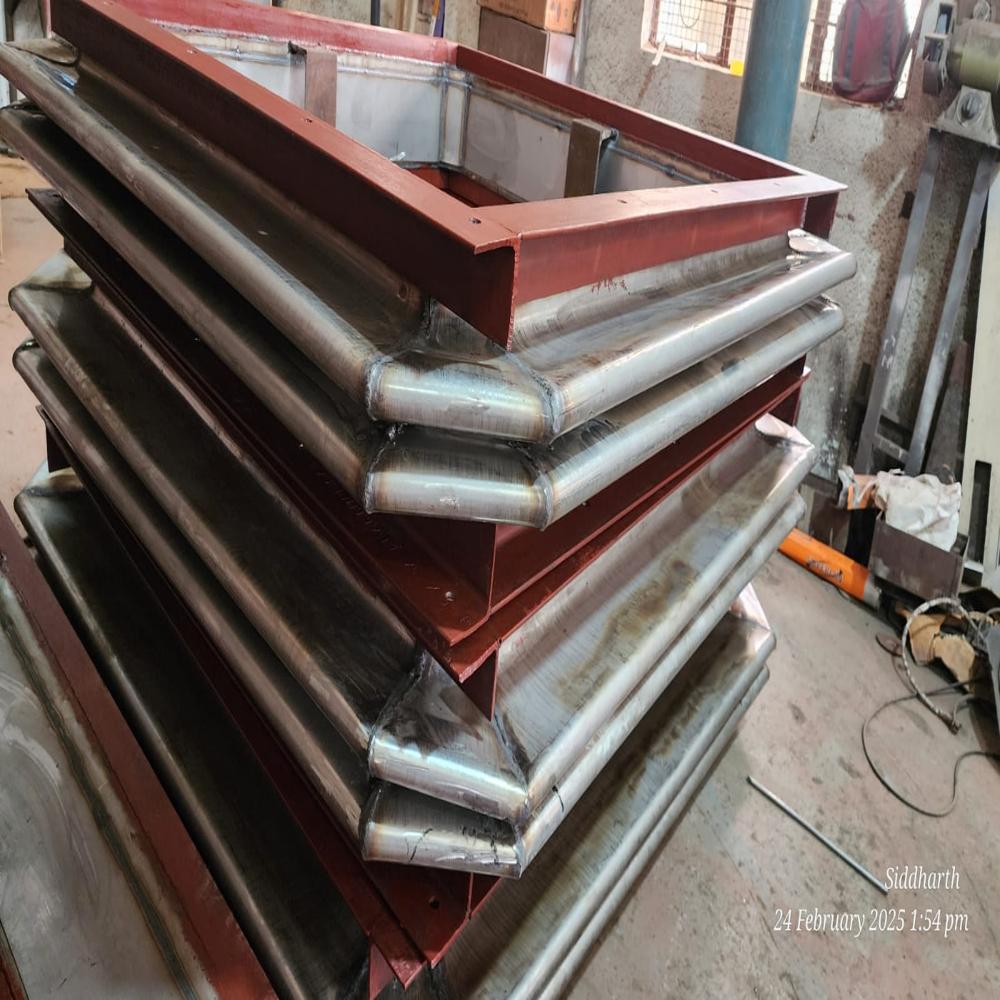

SS Expanssion Bellow

Name: SS Expanssion Bellow
Brand: DYANNAMIC COMBUSTION SOLUTIONS
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SS Expanssion Bellow Specification

Media
Gas, Steam, Air, Water, Chemical

Max. Temperature
Up to 800C

Flange
Available as per customer requirement

Head Code
Rectangular Head

Surface Treatment
Polished / Anti-corrosive coating

Material
Stainless Steel (SS)

Technique
Welded / Formed

Type
Expansion Bellow

Connecting Type
Flanged / Welded Ends

Shape
Rectangular

Working Pressure
Up to 25 bar

Size Range
Customizable as per application (typically 50mm to 2500mm)

Number of Ply/Layers
Single / Multi Ply

End Connection
Drilled Flange, Weld End, Slip-on Flange

Installation Orientation
Horizontal / Vertical / Custom Fit

Leakproof
100% Leak Tested

Material Grade
SS304 / SS316 / SS321

Application
HVAC, Chemical, Power Plant, Refineries, Piping System Expansion Control

Movement Type
Axial / Lateral / Angular

Corrosion Resistance
Excellent

Durability
High Flexibility and Fatigue Life

Design Standard
EJMA / ASME

Inner Sleeve
Optional for turbulence and erosion protection

SS Expanssion Bellow About

An expansion bellows, also known as an expansion joint or compensator, is a flexible component used in piping systems to absorb thermal expansion and contraction. Heres some key information:

What is an Expansion Bellow?

An expansion bellows is a flexible, corrugated or convoluted section of pipe that can expand and contract to absorb thermal movements, vibrations, and misalignments.

Flexibility

Expansion bellows are designed to be flexible, allowing for movement in multiple directions.

Thermal Expansion

They absorb thermal expansion and contraction, reducing stress on piping systems / Ducting Systems.

Vibration Dampening

Expansion bellows can also dampen vibrations and noise in piping systems / Ducting Systems.

Versatility in Movement & Connection Types

SS Expansion Bellows are engineered to accommodate a range of movements such as axial, lateral, and angular, ensuring adaptability across multiple piping configurations. They are available with flanged, welded, or slip-on connections, offering installation flexibility in both new and retrofit systems. This versatility makes them ideal for HVAC, refineries, and power plants.

Unmatched Reliability & Durability

Constructed from SS304, SS316, or SS321 stainless steel, these bellows deliver superior resistance to corrosion and fatigue. Designed as per EJMA/ASME standards, they guarantee a long operational lifespan, even in high-pressure or high-temperature environments. Rigorous leak testing further assures their dependable function for critical processes.

Custom-Fit for Optimal Performance

Manufacturers provide fully customizable options in terms of size, number of plies, end connections, and inner sleeves for turbulence or erosion protection. This tailored approach ensures each SS Expansion Bellow precisely matches the installation's requirements, maximizing safety, efficiency, and service life.

FAQ's of SS Expanssion Bellow:

Q: How are SS Expansion Bellows typically used in industrial applications?

A: SS Expansion Bellows are installed in piping systems to absorb movement caused by thermal expansion, vibration, and mechanical displacement. They are commonly used in industries such as power plants, refineries, chemical processing, and HVAC for reliable expansion control and enhanced durability.

Q: What materials are available for SS Expansion Bellows, and how do I choose the right one?

A: These bellows are offered in SS304, SS316, and SS321 stainless steel. The appropriate material depends on the application's specific requirements, such as operating temperature, media compatibility, and corrosion resistance. For highly corrosive or high-temperature environments, SS316 or SS321 is often preferred.

Q: When should an inner sleeve be specified for an expansion bellow?

A: An inner sleeve is recommended when there is a need for turbulence or erosion protection, especially when transporting abrasive or high-velocity media. The sleeve helps prolong bellow service life and maintains optimal flow characteristics.

Q: Where can I install SS Expansion Bellows, and in what orientations?

A: SS Expansion Bellows are designed for both horizontal and vertical installation. Their robust design and customizable features allow them to be installed wherever expansion control is required within a piping network, regardless of orientation.

Q: What is the process for customizing the size and design of SS Expansion Bellows?

A: Customization involves specifying parameters such as movement type, size range (typically 50mm to 2500mm), number of plies, end connection style, and any additional features like inner sleeves or surface treatments. Manufacturers work closely with clients to ensure the bellows meet all application-specific standards and requirements.

Q: How is leakproof performance assured in these bellows?

A: Each bellow undergoes 100% leak testing according to EJMA or ASME standards before delivery. This process guarantees secure operation under stated pressure (up to 25 bar) and temperature conditions, preventing leaks in critical services.

Q: What are the main benefits of using SS Expansion Bellows?

A: Key benefits include high flexibility, excellent fatigue life, superior corrosion resistance, and adaptability to various temperature and pressure conditions. Their customizable design ensures a precise fit, while their polished or anti-corrosive surface treatment further extends life and maintains performance in challenging environments.
